Summer hits and the warehouse is suddenly completely empty. Beverage buyers call your phone every single day asking for product. Your machines already run day and night. Buying a whole new blowing line takes way too much cash and you have to wait six months for delivery. The only real way out is squeezing more bottles from your current floor setup. Shaving just a tiny fraction of a second off your blow molding cycle time changes everything. It adds up to thousands of extra bottles by the end of a single shift. A well-engineered blowing mold not only forms the perfect bottle but serves as the core tool to drastically cut down your daily cycle times and maximize output. Let us look at five real ways to speed things up right now.

How Can You Upgrade Your Mold Cooling Channel Design?

The biggest thief of time in plastic manufacturing is just waiting around. Hot plastic enters the cold metal cavity and you have to wait for it to freeze hard enough to hold its shape. If the cooling setup is bad, you wait longer. In the middle of July, your factory cooling water might get much warmer than you actually want. A lazy water layout just makes this summer heat problem much worse.

The Magic of Better Water Flow

Old designs use simple straight drilled holes for water flow. That leaves dangerous hot spots. The bottle base is thick. It stays hot for a very long time. Upgrading to conformal cooling channels forces the cold water to hug the actual curved shape of the plastic base. It wraps around the hot spots perfectly. This pulls the heat out much faster. The faster the heat leaves the plastic, the sooner the metal block opens.

Why Should You Switch to High-Thermal-Conductivity Mold Materials?

Steel is tough but it holds onto heat stubbornly. When you trap hot plastic inside normal steel, the heat transfer just crawls. You need materials that act like a fast sponge for heat. You cannot build the entire block out of soft metals, but you can target the trouble spots.

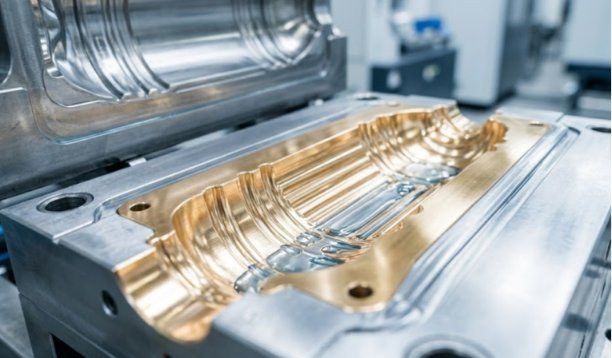

Beryllium Copper in the Base

A smart trick is swapping out standard steel for beryllium copper in the bottom inserts. The base is always the thickest part of a PET bottle. It takes the absolute longest to cool down. Honestly, procurement guys sometimes complain about the upfront raw material price of copper. But they forget the basic math of daily high-speed production. Beryllium copper sucks the heat away instantly. That cuts your wait time down and pushes your beverage output up instantly.

Does Mold Venting Actually Speed Up Air Escape?

People always forget about the air already sitting inside the empty metal cavity. When high pressure air blows the plastic open, that old air needs a fast place to go. If it gets trapped, you have a massive problem on your hands.

Cutting the Invisible Backpressure

Trapped air acts like a strong invisible wall. It fights the plastic stretching process. This invisible wall is called backpressure. Good mold venting gives that trapped air a fast exit path. When the air escapes instantly, the plastic hits the cold metal walls sooner. A faster hit means faster cooling. Make sure the tiny venting slots are clean and deep enough. If the air cannot escape fast, the bottle might have soft and blurry corners at the bottom instead of sharp feet.

Can Rethinking the Bottle and Preform Design Cut Time?

Sometimes the machine is doing a perfect job, but the actual plastic part is just too fat. Heavy plastic is simply the enemy of speed. You cannot cheat the basic rules of physics.

Thinning Out the Wall Thickness

If the wall thickness is heavy, it holds heat like a thick winter coat. You need to trim the fat from the design. A good shape reduces the overall weight while keeping the physical crush strength intact. Lighter plastic cools down in a real flash. Plus, resin prices jump up and down every single month. Using less plastic saves big money on raw materials and speeds up your entire floor.

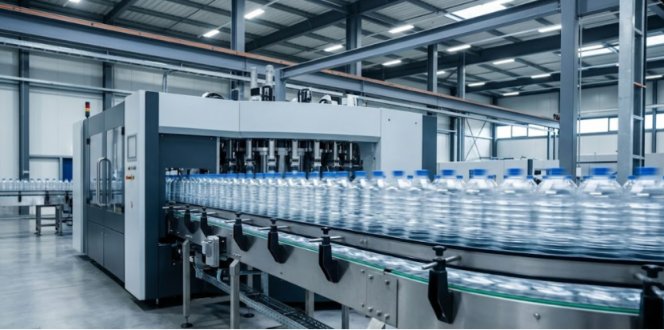

Are Your Molds Compatible with High-Speed Rotary Machines?

You can have the best cooling lines and the fastest copper inserts in the world. But if the metal block sticks or jams on the main machine track, you lose all the time you just saved. The mechanical fit has to be absolutely perfect to keep the line moving.

Finding the Right Manufacturing Partner

This is exactly where choosing the right tool builder changes the game. Look closely at Foshan Heyan Precision Mold Technology Co., Ltd.. They are a top expert in building precision tools for drinking water, juice, edible oil, and dairy containers. They do not just cut metal blocks. They deliver a blowing system complete line supporting program perfectly tailored to your factory floor. Their engineering team knows exactly how to make a tool run flawlessly at maximum speed without breaking down after a week. When you upgrade your production line, choosing a precision blowing mold that seamlessly integrates with world-leading high-speed rotary machines is critical for maintaining high-speed operation. Foshan Heyan builds that exact level of high-end precision. They make sure the opening and closing mechanical actions happen in a split second. This keeps your daily downtime at zero and your summer profits high.

FAQ

Q1: What is the easiest way to lower blow molding cycle time?

A: Upgrading your water cooling layout is the fastest fix. Better water flow pulls heat away from the hot plastic much faster than standard straight lines.

Q2: Why do people use beryllium copper in the mold base?

A: The bottom of the bottle is usually very thick and stays hot. Beryllium copper acts like a super sponge for heat and cools that thick part rapidly.

Q3: Can bad mold venting slow down production?

A: Yes it definitely can. Trapped air pushes back against the hot plastic. If the air escapes fast, the plastic stretches and touches the cold walls sooner.

Q4: Does a lighter PET bottle cool faster?

A: Absolutely. Less plastic means less total heat to remove. Trimming the wall thickness helps the plastic freeze solid in far less time.

Q5: Will a better mold work on my old machine?

A: Good custom tooling fits exactly onto your current high-speed rotary setup. It makes the opening and closing movements smoother and much faster.
