How the Insert Molding Process Enhances Product Durability and Design

Insert injection molding has changed the way industries handle product strength, efficiency, and size. It works by placing metal or other ready-made parts into plastic while molding. This method creates pieces that are strong and simple to put together. Engineers and makers in busy fields like cars, health care, and gadgets find real gains in performance and making things here.

If you need a reliable team for exact mold work, check out Foshan Heyan Precision Mold Technology Co., Ltd.. The firm sits in Foshan City, Guangdong Province. It is a tech-focused business that handles design, research, making, and selling. They know a lot about preform molds, blow molds, cap molds, and smart injection setups. With good machine skills and a top-notch tech group, they earn praise for careful tools and made-to-order building options.

How the Insert Molding Process Works

Insert injection molding does more than mix stuff. It builds a strong link between them. The method lets you make parts with built-in features. At the same time, it cuts down on steps to assemble.

Key Stages of the Insert Injection Molding Cycle

The cycle begins with putting inserts in place. You can do this by hand. That works well for small batches or tricky setups. Or use machines for bigger runs. After the insert stays fixed in the mold space, hot plastic goes in under strong pressure.

Then the mold gets cool. The plastic hardens around the insert. This forms one solid piece. When it pops out, some items might need small fixes like cutting edges or smoothing bumps.

Material Pairing Between Inserts and Plastics

Matching matters a lot when picking inserts and plastics. Usual inserts include brass. It machines well and fights rust. Stainless steel gives solid strength. Aluminum keeps things light for certain jobs.

Plastics change based on the task. ABS molds simply and fits everyday items. Nylon stands up to rubbing. PEEK handles heat and chemicals well. It suits plane parts or health tools.

Pick materials that grow or shrink at similar rates when hot. This helps the bond stick better. It also cuts down on breaks from cooling stress.

Manual vs. Automated Insert Placement

Hand placement gives flexibility for tiny batches or odd shapes. But when making lots, machines shine. They cut mistakes from people and keep runs steady. Still, they cost more at first and need exact tools.

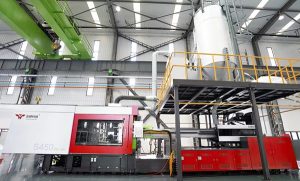

No matter if you make few or many, HEYAN provides an Injection Molding System Complete Line Supporting Program. It helps smooth work from loading molds to after-molding steps.



Durability Benefits from Insert Molding

The strength perks of insert molding stand out. This way adds toughness where old joins or glues might give way under load.

Improved Mechanical Strength Through Integration

An insert serves as a strong core in the molded item. It does not just stick on later, where it might move or come loose. Instead, it joins right in. This setup spreads out pressure better. And it boosts how much weight the part can hold.

Resistance to Wear, Vibration, and Torque Forces

Parts from insert molding fight off shakes and twists better. They tire out less from repeated pulls. Mixing metals with shaped plastics adds power in key spots. Think threads, weight lines, and rub areas. This toughness fits car sensor boxes or spinning factory parts well.

Long-Term Performance in Harsh Environments

Pair rust-proof metals with smart plastics. Then insert-molded parts keep working in tough spots. They handle wet areas, chemical touches, or hot-cold changes. That is why folks use them in outside gear or clean health tools.

Design Advantages Enabled by Insert Molding

This method gives more than power. It opens up design ideas that other making ways struggle to match.

Compact Component Architecture

Insert molding skips screws or glues. So you get smaller setups that still do the job. This helps in gadgets where room is short.

It blends many pieces into one. That shrinks the overall size. And it keeps the work going. Designers love this quick path to neat builds with less weak spots.

Greater Design Freedom with Complex Geometries

Makers face fewer limits from old rules. You can add hooks, screw lines, uneven walls. Even wrap sensors or magnets in covers.

Exact spot for inserts in the mold means tight fits where needed. This care sets apart places like Heyan Technology. They shine in machine exactness and custom tool skills.

Reduced Assembly Time and Cost Overhead

The insert joins the plastic right in the make. So no extra steps to add it later. This slashes work time and effort. It also makes results more even.

Common Applications Across Industries

Insert molding fits many tough fields thanks to its flexible nature.

Automotive Systems Requiring High Reliability

It shows up a lot in car panels, motor parts, and sensor covers. These bits take shakes, heat swings, and oil or chemical hits. They stay stuck and strong.

Medical Devices with Strict Safety Standards

Insert molding bonds metal tips or frames in plastic shells without gaps. This suits tubes or check tools. The smooth join also makes hand-held surgery gear easier to hold.

Consumer Electronics Demanding Compactness

Picture USB plugs or watch bodies. They are small but tough. Metal bits sit inside plastic cases without extra size.

Considerations When Implementing Insert Injection Molding

This advanced way has engineering points to watch from the start.

Mold Design Requirements for Insert Integration

The mold shapes the part. But it must also hold the insert steady during the fill. Things like guide pins or slots stop slips as hot plastic moves.

Resin Flow Behavior Around Inserts

Bad flow causes empty spots or thin covers. Tests on flow spot trouble areas. Air can get trapped, mainly near tricky insert shapes.

Production Volume vs Tooling Investment Tradeoff

For small runs, flexible molds save money. They take longer per piece, though. For big output, special tools pay back fast. They speed things up and cut flaws.

Material Selection Strategies for Optimal Results

Right picks for plastic and insert shape bond strength and lasting power.

Choosing Between Thermoplastics Based on Application Needs

Jobs with lots of heat pick PEEK. Places with much rubbing go for nylon types.

Matching Insert Materials with Functional Goals

• Brass: Good for cutting and against rust.

• Stainless Steel: Strong hold under push.

• Aluminum: Light choice, but best for low-pull jobs since it is softer.

Metal inserts with molded plastics boost how well products work. They strengthen main spots and keep weight down.

Challenges That May Arise During the Process

No way works perfect. Spotting issues early saves money later.

Thermal Expansion Mismatch Between Materials

Inserts and plastics change size different when warm. Without planning, inside pulls cause splits or weak spots over time.

Insert Shift During Injection

Weak holds let inserts drift in the fill. Good mold parts and machine placement fix this.

Increased Initial Tooling Complexity

Special designs to grip inserts make molds harder. They take more time to build at first. But once set, these tools run quicker and have fewer bad parts long run.

FAQ

Q1: What’s the main difference between insert molding and overmolding?
A: Insert molding puts a ready part inside plastic in one go; overmolding adds one material over another in steps.

Q2: Can I use 3D printed inserts in this process?
A: Yes. But the print stuff must take the heat from injection without bending.

Q3: Is insert molding suitable for prototyping?
A: For few test pieces, it costs more. Use flexible tools to cut setup costs.

Q4: What’s the typical lifespan of an insert-molded part?
A: With good match and control, these last years. Even with pulls or weather hits.

Q5: How do I know if my design is compatible with insert molding?
A: Talk to a mold expert early. They tweak for better fits and material matches. This helps with built-in tech or heavy-load builds.
